HARPP DDI™ (Deep DDoS Inspection) Technology

DDoS Mitigator’s DDI™ (Deep DDoS Inspection) Technology is designed to be your intelligent shield against DDoS attacks with Advanced Persistent Threat (APT) capabilities.
By its best of the breed anomaly engine with heuristic and non-heuristic algorithms supported by 34+ data sensors and innovative proportions feature based on historical data collections and timely averages, unpredictable DDoS traffics can be detected on real-time for cleaning.

Real-time Inspection Real time traffic analysis

In time decision before DDOS

floods reaches to firewall

Data Sensors 34+ data sensor groups under

4 categories

Advanced configuration

tool to make sensors fully controllable L7,

application level sensors

Static Thresholds By default generic static thresholds

experienced in different types

of networks, traffics and attacks

Dynamic Threshold  Optimization Automatic optimization of sensor thresholds

based on

*threat level

*historical records archived on sensors

Proportions Network Memory

(Historical Data Collections)

Averages (annual, seasonal, monthly, daily,..)

Anomaly Engine Heuristic and non-heuristic algorithms

that use data sensor averages

Source determination of anomalous traffics

Geographical Traffic Classification Country based filtering

IP Block based filtering

IP Reputation IP itibar veritabanı sorgusu

5 seviyeli istisna listeleri (beyaz ve kara listeler)

DOS IPS DDOS pattern signatures for attacks

using application and system vulnerabilities

Deep Packet Inspection Firewall L7 Packet Inspection

Stateful Packet Inspection

Bandwidth Management

Ipv6 support

Data Sensor Categories



Incomming packets TCP connections TCP clients DNS deep DoS/DDoS inspection
Outgoing pockets UDF connections UDP clients Commonly used ports inspections
TCP packets ICMP connections ICMP clients HTTP GET sensor
UDF packets Other connections Other clients HTTP POST sensor
ICMP packets Established TCP connections TCP established clients HTTP other words
Other packets TimeWait connections TimeWait clients L7 IPS sensors
IPv4 packets TCP SYN connections FinWait clients
IPv6 packets TCP other flags TCP SYN clients
Incoming bandwidth TCP other flagged clients
Outgoing bandwidth

During or after the cyber attack, DDoS Mitigator gives you the chance to deeply analyze the attack

using the deductive case evidences including attacker IPs, attacker country, attack type and duration.

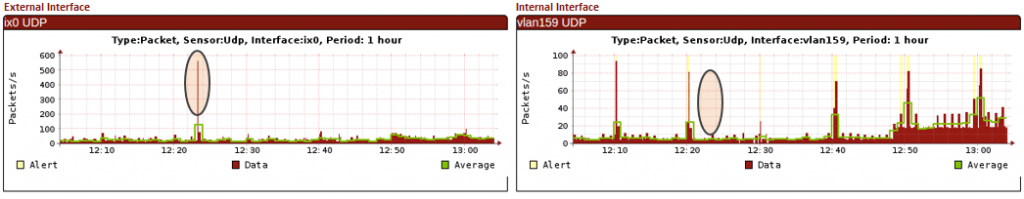

On-the-fly Comparison of WAN/LAN Traffics



DDoS Mitigator is the first level of protection of your network against cyber attacks keeping you online and ensuring business continuity with minimal investment.

In addition to state-of-the-art defense functions providing high-level protection to your web and DNS infrastructure by its normalization, protection and protocol-specific security tools, preemptive defense functions are continually active day and night. The DDoS Mitigators all around the world create a wide security intelligence network you can access in real-time which is one of the key-differentiators.

Defense Functions

Normalization IP Spoof scrubbing

Bogon IP scrubbing

Botnet zombie determination

TCP/IP protocol anomaly scrubbing

Packet defragmentation

DOS/DDOS packet generator tool blocking

Traditional DOS/DDOS tools blocking

(Teardrop, Land, smurf, fruggle, winnuke,

ping of death, oversized ICMP vb.)


Automatic aggressive session time-out

Mitigation/Prevention Time-out based on attack magnitude

Rate limiting

Packet dropping

IP/Network/Country blocking

Ability to give automatic access, only to

specific countries, white list, dynamicaly

produced frequent users, in case of

an emergency level exceeded

Challenge-Response Page



Robot detection and prevention methods

for TCP, UDP and DNS protocols

Preemptive Defense Functions



Coordination of associated DDOS Mitigators

State, alarm, data, log sharing

Automatic ISP notification

IP reputation feedbacks

Setting Trap IP and port



IP reputation feedbacks

Automatic ISP notification

Setting Trap IP and port

Case Evidences & Forensic Analysis

Attack Lists Chronologic attack list

Chronological subattack list

Attack filtering by

– interfaces

– attack type

– attack duration

– the beginning of the attack

– the end of the attack

Block IP Lists Searchable Blocked IP lists
Case Evidences Case evidence log file

Ability to work on evidence logs on

management screen

Ability to download evidence log file(pcap)

Attacker IP List

Filtering of block lists Filtering current blockages list by

– attacker IP

– attacker country

– attack type

– the beginning of blockage

Alarms E-mail/SMS notification

Attack report e-mail

Customizable alarms

One of the key-advantages of DDoS Mitigator is its steerable and instantly tunable structure. During an intelligently-designed and complex DDoS attack, having a dynamic dashboard that visualizes the dynamic attacks is extremely important. DDoS Mitigator’s AVS™ (Attack Visualization System) provides multidimensional graphics where the deep attack characteristics can be fully monitored and analyzed to take the right steps in the possible shortest time.

Management and Reporting

Installation Installation without changing the topology or
any other device configuration (no-change-deploy™)
‘Install-as-a-router’ Support
Interoperable with all standards-compatible network ‘
User Interface Web based dynamic user interface for configuration

and monitoring

AVS™ (Attack Visualization System)

HTTPS/SSH Secure Management Support

Multilingual Management Interface

Operating system free management platform



Dynamic dashboard with pre-configured graphs

(both for WAN and LAN interfaces)

Quick picture of the system

– Number of connections

– Number of states

– Number of unique IPs

– Packet per second value

– Bandwidth per second value

– System load

Reports Ready report templates

Reporting engine with parameters

Updates IP Reputation Database

DDoS Signature Database

DDI™ Engine

Advanced Firmware (Partially Upgradable)

No System Interruption for Firmware/Database Updates

Logging Internal Logging Area

Internal Evidence Collection Area

Trusted Time Stamp



Remote Syslog Support

SNMP Support

Backup Automatic configuration backups

Restore the needed configuration easily

One click away from deep

time-based analysis using

multidimensional graphics




Network Access TCP/IP (IPv4/IPv6)

Policy based routing

Link Aggregation (802.3ad)

Transparent Bridge Mode

VLANs (802.1Q)

WAN Interfaces Metro and Fiber WAN links termination on device
High Availability Flexible external / internal interface support

Clustering Support
