HARPP® Product Family
 |
 |
||||||||||
| MODEL E5 | MODEL E10 | MODEL E15 | MODEL E20 | MODEL E50 | MODEL C4 | MODEL C6 | MODEL C8 | MODEL C10 | MODEL C20 | MODEL C40 | |
| Appliance Form | Rackmount (1U) | Rackmount (2U) | |||||||||
| PPS (PacketsPerSecond) | 600.000 | 3.000.000 | 26.000.000 | ||||||||
| Full Traffic Throughput (up to) | 0.5 Gbps | 1 Gbps | 1.5 Gbps | 2 Gbps | 5 Gbps | 4 Gbps | 6 Gbps | 8 Gbps | 10 Gbps | 20 Gbps | 40 Gbps |
| Max Concurrent Sessions | 20.000.000 | 50.000.000 | 50.000.000 | ||||||||
| 100/1000 Ethernet (PCS) | 8 Port (Max 24) | 4 Port (Max 12) | 4 Port (Max 32) | ||||||||
| Gigabit SFP Port (PCS) | Op (Max 8) | Op (Max 12) | Op (Max 32) | ||||||||
| 10 GIGABIT (PCS) | Op (Max 4) | Op (Max 12) | Op (Max 16) | ||||||||
| 40 GIGABIT (PCS) | Op (Max 4) | Op (Max 12) | Op (Max 16) | ||||||||
| Bypass Interfaces | Copper Interfaces | ||||||||||
| Transparent- L2 Operation | |||||||||||
| LCD Panel | 20×2 LCM, 4 Button | 20×2 LCM, 4 Button | |||||||||
| Redundant Power Supply | Redundant(275W) | Redundant(600W) | Redundant(850W) | ||||||||
| Dimensions (WxHxD) | 431 x 44 x 550 mm | 442 x 88 x 660 mm | 438 x 88 x 600 mm | ||||||||
| Weight (kg) | 8 | 22 | 28 | ||||||||
 |
|||

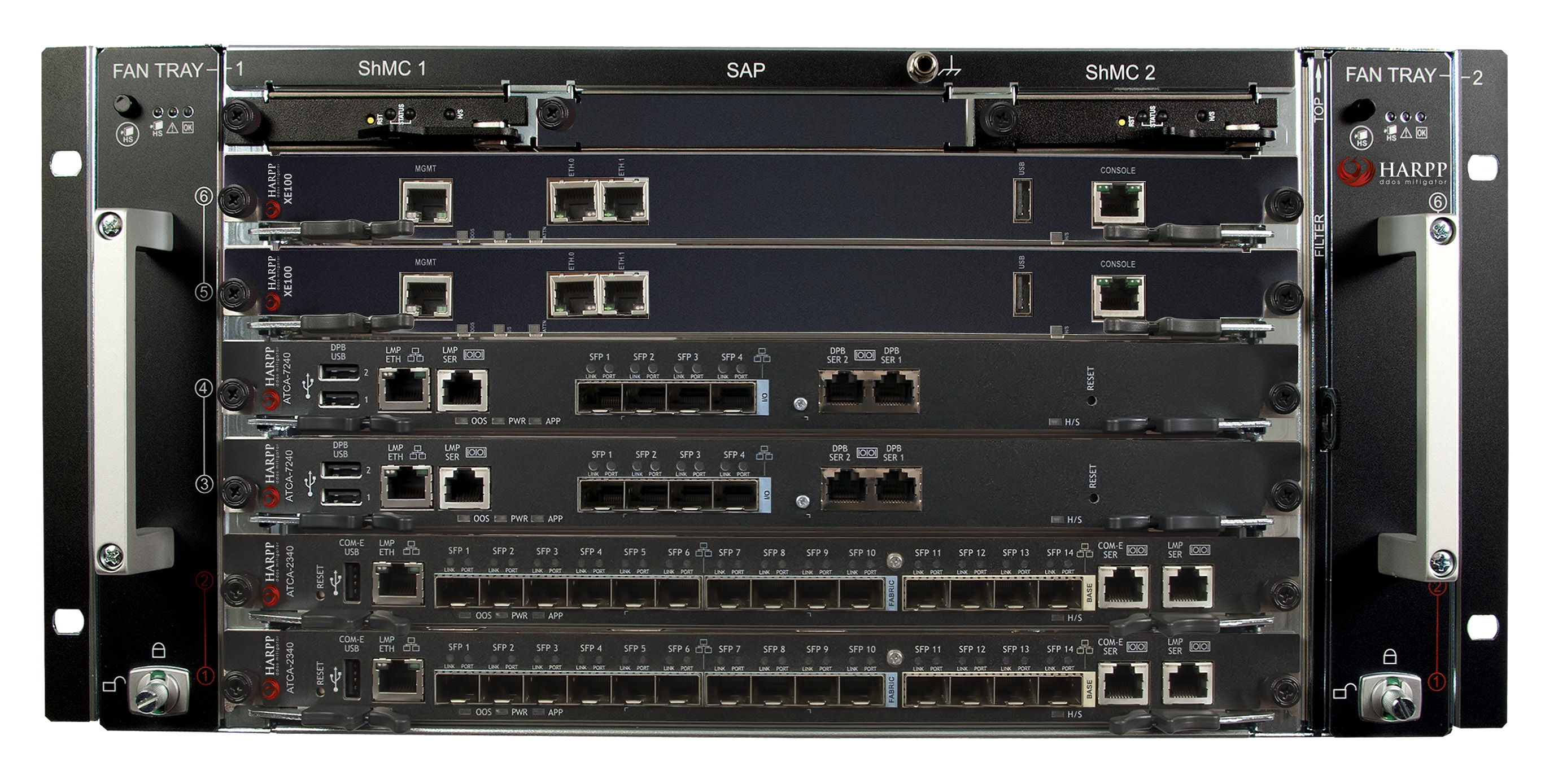

| MODEL R | MODEL RT | MODEL RS | |
| Appliance Form | Rackmount 6U | ||
| PPS (PacketsPerSecond) | 6.000.000 | 9.000.000 | 12.000.000 |
| Max Concurrent Sessions | 50.000.000 | 75.000.000 | 100.000.000 |
| 10 GIGABIT (PCS) | 18 SFP+ | 20 SFP+ | 22 SFP+ |
| Bypass Interfaces | |||
| Transparent- L2 Operation | |||
| Internal Log Capacity | 2 * 240 GB SSD | ||
| LCD Panel | – | ||
| Redundant Power Supply | n+1 Redundant (3600 W) | ||
| Dimensions (WxHxD) | 448 x 221 x 454 mm | 448 x 221 x 454 mm | 448 x 221 x 454 mm |
